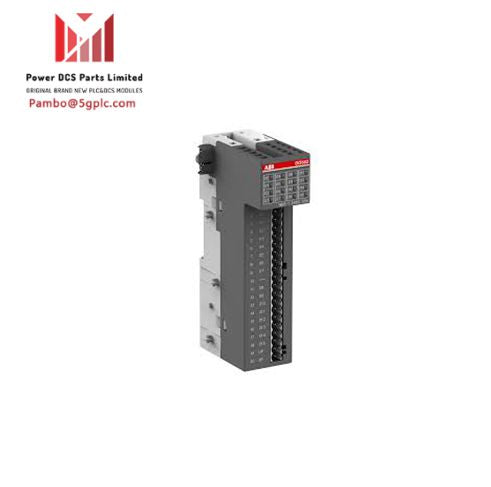

ABB AO561 1TNE968902R1201 Analog Output Module

Product Description:

• The AO561 is an analog output module designed for use in the S500-eCo series.
• It provides two analog outputs that can handle both voltage (U) and current (I) signals.
• The module operates using a 1-wire connection.

Technical Specifications:

• Function: 2 AO (Analog Output) for both voltage and current.
• Number of Analog Configurable I/Os: 0 (These outputs are fixed and cannot be reconfigured.)
• Resolution: 12-bit analog output.
• Connection Type: Pluggable (for easy installation).
• Degree of Protection: IP20 (suitable for indoor use).
• Ambient Air Temperature:
  • Operation: 0°C to +60°C
  • Storage: -40°C to +70°C

Dimensions and Weight:

• Product Net Weight: 0.118 kg
• Product Dimensions (Net):
  • Depth/Length: 135 mm
  • Height: 74 mm
  • Width: 34 mm
• Gross Weight (including packaging): 0.22 kg
• Package Level 1 Dimensions:
  • Depth/Length: 93 mm
  • Height: 63 mm
  • Width: 170 mm
  • Units per Package: 1 carton

Classifications:

• eClass: 27-24-22-02
• ETIM 8: EC001420 (PLC analogue I/O module)
• UNSPSC: 32151705

Environmental Information:

• SCIP: 5add3c6e-4104-4cdc-be04-27c20a49eec9 (Germany)
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5 (Small Equipment, No External Dimension More Than 50 cm)
