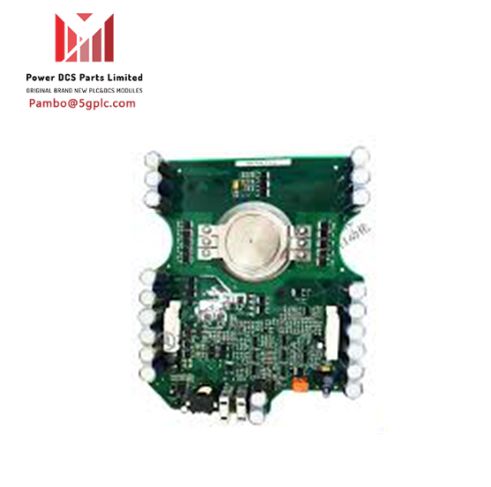

ABB 5SHX0660F0002 3BHE022333R0101 IGCT Module

Description

The ABB 5SHX0660F0002 3BHE022333R0101 is an Asymmetric Integrated Gate-Commuted Thyristor (IGCT) module designed for high-power applications. It is engineered to handle high-speed switching and substantial inrush currents, making it suitable for various industrial applications.

Features

• High Power Density: Efficient power handling in a compact form factor.
• High Reliability: Engineered for consistent performance and durability.
• Low EMI: Minimized electromagnetic interference for cleaner operation.
• Wide Temperature Range: Operates effectively across a broad range of temperatures.
• High-Speed Switching: Capable of handling high-speed switching operations.
• Robust Construction: Built with high-quality components to endure harsh environmental conditions.

Technical Specifications

• Rated Power: 2.2 kW
• Operating Voltage: 230 VAC
• Operating Frequency: 2 kHz
• Output Current: 10 A
• Output Power: 2200 W
• Switching Loss: 100 W
• Switching Frequency: 100 kHz
• Protection Class: IP65
• Dimensions: 100 mm x 100 mm x 50 mm
• Weight: 1.5 kg
• Approvals: CE, UL, CSA
