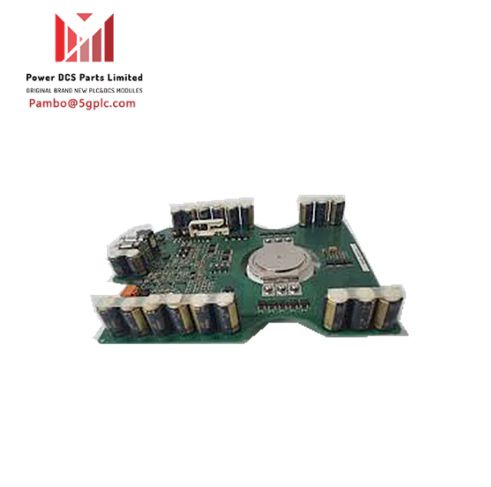

ABB 3BHL000385P0101 5SHX0845F0001 IGCT Module

Description

The ABB 3BHL000385P0101 5SHX0845F0001 is an Insulated Gate Bipolar Transistor (IGCT) module designed for high-voltage, megawatt applications. It combines robust construction with integrated control features to ensure reliable performance in demanding industrial environments.

Features

• High Voltage Rating: Operates at 5kV, suitable for demanding power applications.
• Integrated Gate Commutated Thyristor (IGCT): Combines the benefits of thyristors and transistors for efficient switching.
• Compact Design: 51mm width allows for space-efficient integration in various applications.
• Dedicated Gate Drive Circuit: Simplifies system design and reduces installation costs.
• Comprehensive Protection Mechanisms: Safeguards the system against faults and overloads.

Technical Specifications

• Manufacturer: ABB (Made in Sweden)
• Dimensions: 12.8 x 11.5 x 6.5 cm
• Weight: 0.3 kg
• Continuous Current: Up to 1150A
• Operating Voltage: 5kV
