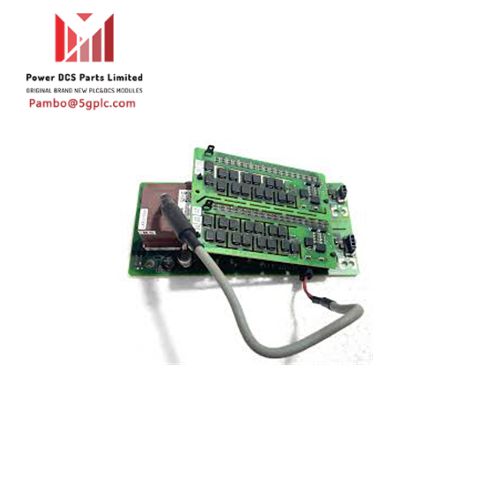

ABB 3BHE039221R0101 HAC807B101 PCB Card

Overview
The ABB 3BHE039221R0101 HAC807B101 is a high-performance and versatile analog output module designed for precise and reliable control of industrial processes. It provides 8 analog output channels, supporting a wide range of output signal types and current ranges. The module's robust design and advanced features make it well-suited for demanding industrial environments, ensuring accurate and reliable process control for critical applications.

Technical Specifications

• Number of analog output channels: 8
• Supported output signal types: Voltage, current
• Output current ranges: 0-20 mA, 4-20 mA, 0-10 mA
• Accuracy: ±0.1% of full scale
• Resolution: 16 bits
• Filtering: Digital filtering, anti-aliasing filtering
• Linearization and scaling: Linearization, scaling, offset correction
• Communication protocol: Modbus RTU
• Dimensions: 170 mm x 100 mm x 20 mm
• Weight: 0.2 kg
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +85 °C
• Humidity range: 5 to 95% RH (non-condensing)

Features:

• Supports a variety of analog output signal types, including voltage and current
• Accommodates a diverse range of output current ranges for versatile control applications
• Delivers precise and accurate output signals with minimal errors, ensuring process stability
• Offers high resolution for fine-grained control and process optimization
• Employs advanced filtering techniques to eliminate noise and interference, improving output signal quality
• Provides linearization and scaling functions for converting control signals into meaningful physical quantities
