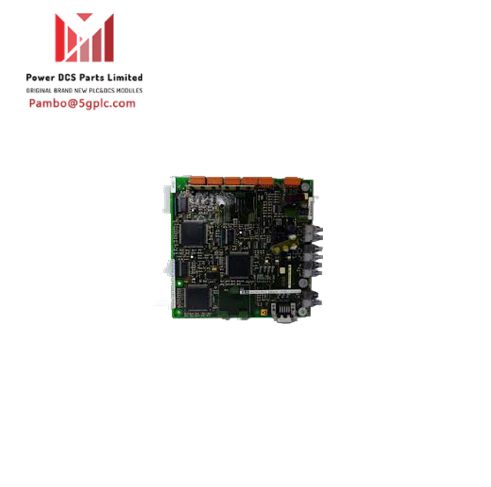

ABB 3BHE036346R0101 XZC825A101 PC Board

Overview
The ABB 3BHE036346R0101 XZC825A101 is a versatile and high-performance analog input module designed for reliable and accurate data acquisition in industrial automation applications. It provides 8 analog input channels, supporting a wide range of input signal types and voltage ranges. The module's robust design and advanced features make it well-suited for demanding industrial environments, ensuring precise and reliable data acquisition for critical control and monitoring applications.

Technical Specifications

• Number of analog input channels: 8
• Supported input signal types: Voltage, current, temperature
• Input voltage ranges: 0-10 V, 0-20 V, -10 to +10 V, 4-20 mA
• Accuracy: ±0.1% of full scale
• Resolution: 16 bits
• Filtering: Digital filtering, anti-aliasing filtering
• Linearization and scaling: Linearization, scaling, offset correction
• Communication protocol: Modbus
• Dimensions: 170 mm x 100 mm x 20 mm
• Weight: 0.2 kg
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +85 °C
• Humidity range: 5 to 95% RH (non-condensing)

Features:

• Supports a wide range of analog input signal types, including voltage, current, and temperature
• Accommodates a variety of input voltage ranges, catering to diverse industrial applications
• Provides high accuracy measurements with minimal errors, ensuring data integrity
• Offers high resolution for precise signal detection and analysis
• Employs advanced filtering techniques to eliminate noise and interference, improving signal quality
• Provides linearization and scaling functions for converting raw analog signals into meaningful engineering units
