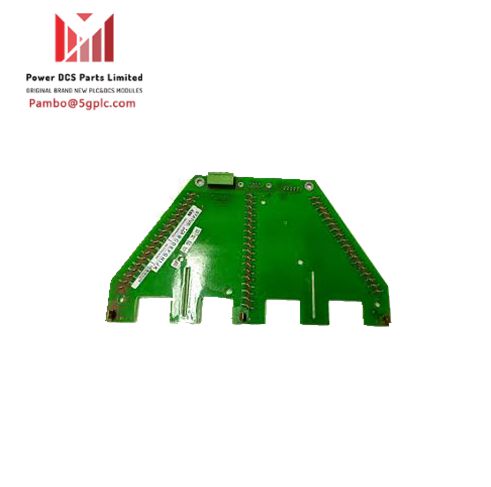

ABB 3BHE032285R0102 XVC772A102 Circuit Board

Overview
The ABB 3BHE032285R0102 XVC772A102 is a compact and versatile signal isolator module designed for reliable and safe signal transmission in industrial automation applications. It provides isolation between input and output circuits, preventing ground loops and noise interference while ensuring signal integrity and system stability. The module's robust design and advanced features make it well-suited for demanding industrial environments, ensuring safe and reliable signal transmission for critical control and monitoring applications.

Technical Specifications

• Isolation voltage: 2500V AC
• Input/output signal types: Voltage, current, temperature
• Input/output impedance: Input - high impedance, Output - low impedance
• Signal amplification: Up to 10 times
• Signal filtering: Digital filtering, anti-aliasing filtering
• Communication protocol: Modbus RTU
• Dimensions: 170 mm x 100 mm x 20 mm
• Weight: 0.2 kg
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +85 °C
• Humidity range: 5 to 95% RH (non-condensing)

Features:

• Provides high isolation voltage (2500V AC) to protect against ground loops and noise interference
• Ensures signal integrity and system stability in electrically noisy environments
• Offers input/output impedance matching for optimal signal transmission
• Provides signal amplification and filtering to improve signal quality
• Supports a wide range of input and output signal types, including voltage, current, and temperature signals
• Accommodates various signal levels and ranges for flexible integration with different devices
