ABB 3BHE024747R0101 GD C801 IGCT/IGBT Series

Description

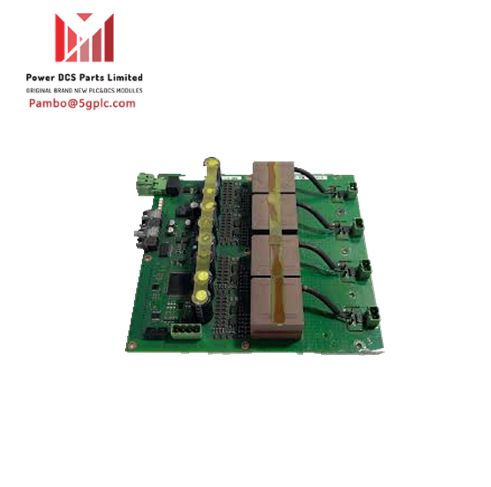

The ABB 3BHE024747R0101 GD C801 is a compact and high-performance printed circuit board (PCB) designed for use in ABB's Relion 605 series of feeder protection relays. It provides a range of protection and control functions, including overcurrent, undervoltage, differential, and load shedding. The PCB is also equipped with a built-in communication interface that supports IEC 61850 and Modbus protocols.

The 3BHE024747R0101 GD C801 ABB has a number of features that make it a popular choice for generator control, including:

• Overcurrent protection
• Undervoltage protection
• Differential protection
• Load shedding
• Small footprint for space-constrained applications
• Conforms to IEC 60068-2-30 for vibration and shock resistance
• Supports IEC 61850 and Modbus protocols for seamless integration into SCADA systems
• Enables real-time data exchange and remote monitoring
• Utilizes high-quality components for long-lasting operation
• Stringent testing procedures ensure consistent performance
• Dimensions: 170 mm x 100 mm x 20 mm
• Weight: 2 kg
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +85 °C
• Humidity range: 5 to 95% RH (non-condensing)
• Communication protocols: IEC 61850, Modbus
