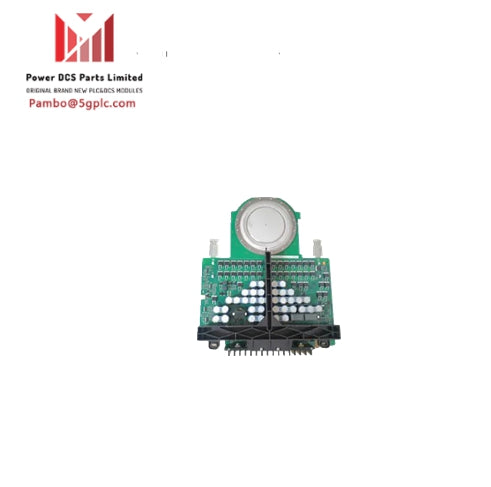

ABB 3BHB012961R0001 5SHX 2645L0002 IGCT/IGBT Series

Description

The ABB 3BHB012961R0001 5SHX 2645L0002 IGCT/IGBT is a high-performance power semiconductor module designed for demanding industrial applications. It features a hybrid design that combines the advantages of insulated-gate bipolar transistors (IGBTs) and integrated gate-commutated thyristors (IGCTs). This results in a module that offers high switching speeds, low conduction losses, and high current handling capability.

The 3BHB012961R0001 5SHX 2645L0002 ABB has a number of features that make it a popular choice for generator control, including:

1. Hybrid design combines the advantages of IGBTs and IGCTs
2. High switching speeds
3. Low conduction losses
4. High current handling capability
5. Compact design with DIN rail mounting
6. Easy to install and maintain
7. Type: Hybrid IGCT/IGBT module
8. Voltage rating: 2600 V
9. Current rating: 4500 A
10. Switching frequency: 10 kHz
11. Conduction losses: 1.2 V
12. Cooling method: Water cooling
13. Dimensions: 300mm x 200mm x 100mm
14. Weight: 10 kg
