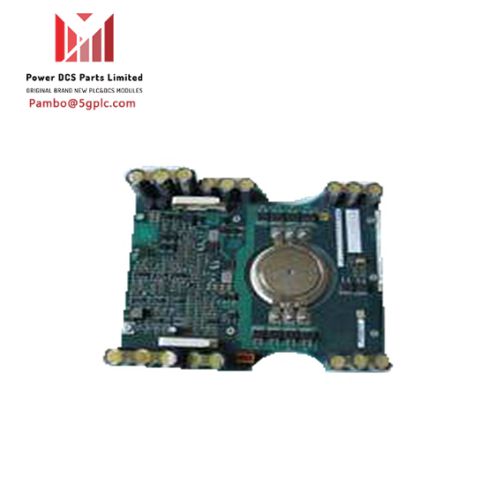

ABB 3BHB003387R101 5SHX0660F0001 IGCT Module

Description

The ABB 3BHB003387R101 5SHX0660F0001 is a high-performance IGCT (Integrated Gate-Commuted Thyristor) module designed for efficient and reliable control of high-power applications. It combines the advantages of gate turn-off thyristors (GTO) and insulated gate bipolar transistors (IGBT), providing fast and stable energy conversion.

Features

• High Power Handling: Capable of managing high voltage and high current conditions.
• Fast Switching: Ensures quick and reliable control.
• Efficient Energy Conversion: Provides stable and efficient energy conversion.
• Compact Design: Space-saving with dimensions of 100 x 100 x 100 mm.
• Protection: Offers robust control and protection features.

Technical Specifications

• Model Number: 3BHB003387R101
• Part Number: 5SHX0660F0001
• Type: IGCT Module
• Dimensions: 100 x 100 x 100 mm
• Weight: 1 kg
• Protection Level: IP30
• Adapted Motor Power: 99 kW
• Applicable Pipeline: 8
• Certifications: CE, RoHS
