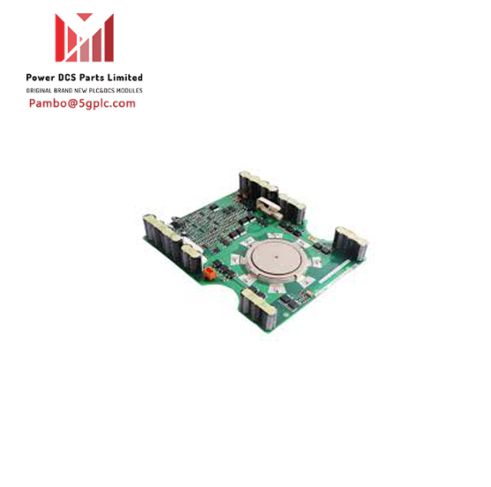

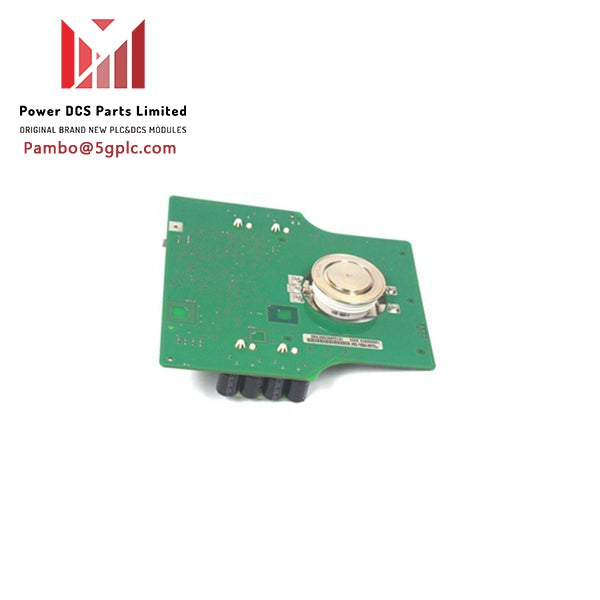

ABB 3BHB003230R0101 5SHX14H4502 IGCT/IGBT Series

Description

The ABB 3BHB003230R0101 5SHX14H4502 is a compact and high-performance motor protection relay designed to safeguard electrical motors from various faults and overloads. It offers a comprehensive range of protection functions, including overcurrent, undervoltage, ground fault, and thermal overload protection. The relay also features advanced features, such as motor starting supervision and load shedding, ensuring the reliable operation and protection of connected motors in demanding industrial applications.

The 3BHB003230R0101 5SHX14H4502 ABB has a number of features that make it a popular choice for generator control, including:

1. Voltage rating: 200-600 V AC
   Current rating: 1-400 A
   Frequency rating: 47-63 Hz
   Protection functions: Overcurrent, undervoltage, ground fault, thermal overload
   Advanced features: Motor starting supervision, load shedding
   Communication protocols: Modbus, IEC 61850
   Dimensions: 170 mm x 100 mm x 20 mm
   Weight: 2 kg
   Operating temperature range: -25 to +70 °C
   Storage temperature range: -40 to +85 °C
   Humidity range: 5 to 95% RH (non-condensing)
