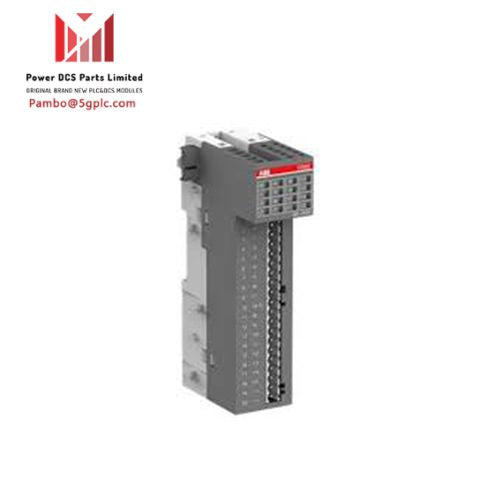

ABB 1TNE968902R2302 DX571 Digital I/O Module

General Information

• Product Model: DX571
• Product ID: 1TNE968902R2302
• ABB Type Designation: DX571
• European Article Number (EAN): 6943747170282
• Catalog Description: Digital input/output module. 8 DI sink/source: 24VDC. 8 DO relay: 120..240VAC 2A (DX571)
• Long Description: DX571: S500-eCo Digital input/output module. 8 DI sink/source: 24VDC. 8 DO relay: 120..240VAC 2A. 1-wire.

Ordering

• CN8: 85371091
• Invoice Description: Digital input/output module. 8 DI sink/source: 24VDC. 8 DO relay: 120..240VAC 2A (DX571)
• Made To Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
• Selling Unit of Measure: piece

Dimensions

• Product Net Weight: 0.14 kg
• Product Net Depth: 135 mm
• Product Net Height: 74 mm
• Product Net Width: 34 mm
• Gross Weight: 0.242 kg
• Package Level 1 Depth / Length: 93 mm
• Package Level 1 Height: 63 mm
• Package Level 1 Width: 170 mm
• Package Level 1 Units: 1 carton

Technical Specifications

• Function: 8 DI sink/source: 24VDC. 8 DO relay: 120..240VAC 2A
• Number of Digital Inputs: 8
• Number of Digital Outputs: 8
• Number of Analog Configurable I/Os: 0
• Input Voltage Type: AC/DC
• Input Current: 5 mA
• Maximum Input Voltage: 0 ... 30 V
• Delay Time (τ): 8 … 8 ms
• Output Type: Relay
• Output Voltage Type: AC
• Output Voltage (Uout): 24...230 V
• Output Current: 2 A
• Maximum Output Voltage: 195.5 … 276 V
• Connection Type: Pluggable
• Degree of Protection: IP20
• Supply Voltage: 20.4 … 28.8 V DC
• Ambient Air Temperature: Operation 0 ... +60 °C, Storage -40 ... +70 °C

Additional Information

• Product Series: DX571
• Product: Distributed Automation I/Os

Classifications

• eClass: 27-24-22-04
• ETIM 8: EC001419 - PLC digital I/O-module
• UNSPSC: 32151705

Environmental Conditions

• SCIP: fcf81398-6142-481c-8bff-736b95ecf10f Germany (DE)
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
