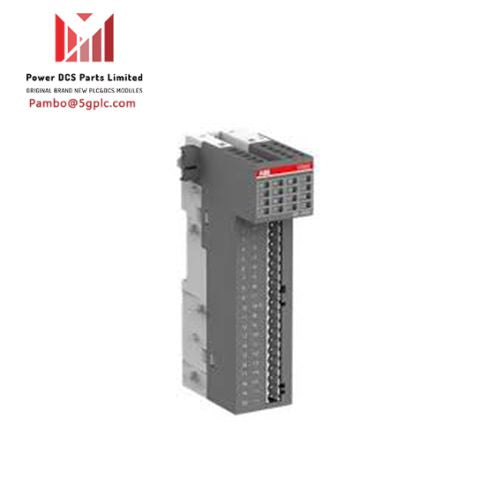

ABB 1TNE968902R2201 DO561 Digital Output Module

General Information

• Extended Product Type: DO561
• Product ID: 1TNE968902R2201
• ABB Type Designation: DO561
• EAN: 6943747170244
• Catalog Description: Digital output module. 8 DO: 24VDC 0.5A (DO561)
• Long Description: DO561: S500-eCo Digital output module. 8 DO: 24VDC 0.5A. 1-wire.

Ordering

• CN8: 85371091
• Invoice Description: Digital output module. 8 DO: 24VDC 0.5A (DO561)
• Made To Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
• Selling Unit of Measure: piece

Dimensions

• Product Net Weight: 0.118 kg
• Product Net Depth / Length: 135 mm
• Product Net Height: 74 mm
• Product Net Width: 34 mm
• Gross Weight: 0.22 kg
• Package Level 1 Depth / Length: 93 mm
• Package Level 1 Height: 63 mm
• Package Level 1 Width: 170 mm
• Package Level 1 Units: 1 carton

Technical

• Function: 8 DO: 24VDC 0.5A
• Number of Digital Outputs: 8
• Number of Digital Configurable I/Os: 0
• Output: Transistor
• Output Voltage Type: DC
• Output Voltage (Uout): 24 V
• Output Current: 0.5 A
• Output Voltage Maximum: 20.4 … 28.8 V
• Connection Type: Pluggable
• Degree of Protection: IP20
• Supply Voltage: 20.4 … 28.8 V DC
• Ambient Air Temperature: Operation 0 ... +60 °C, Storage -40 ... +70 °C

Additional Information

• Product Main Type: DO561
• Product Name: Distributed Automation I/Os

Classifications

• eClass: 27-24-22-04
• ETIM 8: EC001419 - PLC digital I/O-module
• UNSPSC: 32151705

Environmental

• SCIP: 2eb4df9f-fadb-42d7-9bd4-222520fe1d85 Germany (DE)
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
