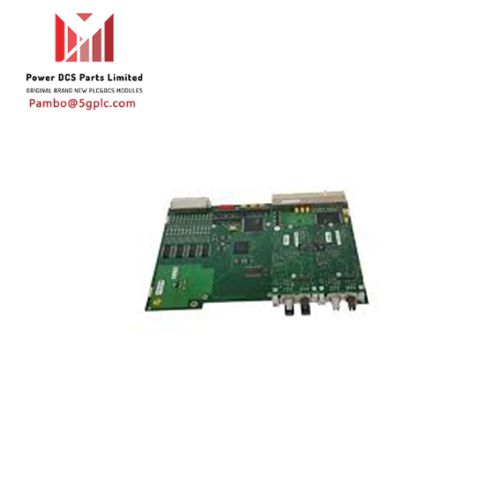

ABB 1MRK002133-ABr02 Analog Digital Module

Overview
The ABB 1MRK002133-ABr02 is a versatile and high-performance 3-axis servo drive designed for a wide range of industrial automation applications. It seamlessly integrates into motion control systems, providing precise and efficient control of various motors and actuators.

Technical Specifications

• Number of Channels: 2
• ADC Resolution: 16 bits
• Sample Rate: Up to 100 kSPS
• Input Range: ±10 V, ±5 V, or ±2.5 V
• PGA Gain: 1, 2, 4, 8, or 16
• Voltage Reference: 2.5V
• Temperature Sensor Range: -40°C to +85°C
• Time Synchronization Accuracy: ±100 ns
• Power Supply: 24 VDC
• Power Consumption: 5W
• Dimensions: 120 x 80 x 30 mm
• Weight: 200 g


Features:

• Compact design: Engineered with a compact and space-saving design, making it suitable for integration into tight spaces and machinery with limited footprint.
• Versatility: Compatible with a wide range of motors, including AC servo motors, brushless DC motors, and stepper motors, providing flexibility in motor selection.
• High performance: Offers exceptional accuracy and precision in motion control, ensuring smooth and synchronized operation of machinery and equipment.
• User-friendly interface: Provides a user-friendly interface for easy configuration and operation, minimizing setup time and simplifying maintenance procedures.
