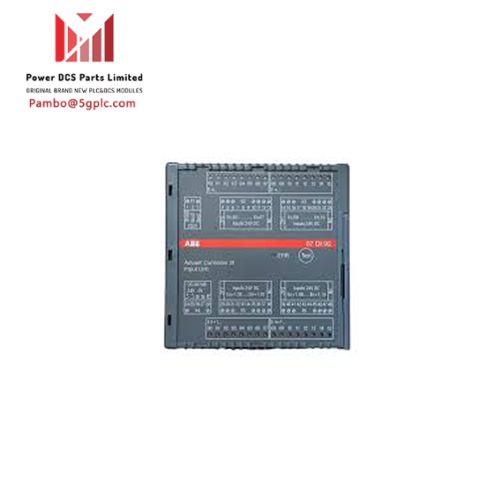

ABB 07DI92 GJR5252400R0101 Digital I/O Module Brand New

General Information

Product Model: 07DI92

Product ID: GJR5252400R0101

ABB Type Designation: 07DI92

EAN: 4013614267659

Catalog Description: 07DI92: AC31, Digital I/O module 32DI

Long Description: 07DI92: AC31, Digital I/O module 32DI 24VDC, DI: 24VDC, 1-wire

Additional Information

ABB Type Designation: 07DI92

ABS Certificate: 1SAA960000-0102

Ambient Air Temperature:

• Operation: 0 ... +55 °C
• Storage: -25 ... +75 °C

CN8: 85389091

CS31-Bus: 1

CSA Certificate: 1SAA960000-1102

Cable Cross-Section: 0.08 ... 1.5 mm²

Country of Origin: Germany (DE), Spain (ES)

Customs Tariff Number: 85389091

DNV Certificate: 1SAA960000-0304

Data Sheet, Technical Information: 2CDC122007D0201

Declaration of Conformity - CE: 1SAD938505-0047

Degree of Protection: IP20

Environmental Information: 1SAA960001-2401

Fieldbus Interface Type: CS31 Slave

Frame Size: Undefined

Gross Weight: 0.59 kg

I/O Option: Bus module with Onboard IO - 32DI

Instructions and Manuals: AC31 with AC1131 Part 2: hardware series 90

Invoice Description: 07DI92: AC31, Digital I/O module 32DI

LR Certificate: 1SAA960000-0502

Made To Order: No

Maximum Operating Altitude Permissible: 2000 m

Minimum Order Quantity: 1 piece

Mounting on DIN Rail:

• TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
• TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Number of Analog Configurable I/Os: 0

Number of Digital Inputs DC 24V: 32

Order Multiple: 1 piece

Primary Voltage: 24 V

Product Depth: 85 mm

Product Main Type: 07DI92

Product Name: Distributed Automation I/O

Product Net Depth / Length: 85 mm

Product Net Height: 140 mm

Product Net Weight: 0.59 kg

Product Net Width: 120 mm

Product Type: PLC-AC31-90

Quote Only: No

RINA Certificate: 1SAA960000-0802

RMRS Certificate: 1SAA960000-0702

RoHS Information: 1SAA960005-4401

Selling Unit of Measure: piece

Serial Port 1 Type: RS-485, CS31

Short Description: 07DI92: AC31, Digital I/O module 32DI

Stocked At (Warehouses): Menden, Germany; Singapore, Singapore

Supply Voltage: 24 V DC

Terminal Type: Screw Terminals, Pluggable

UL Certificate: 1SAA960000-1602

UNSPSC: 32151705

WEEE B2C / B2B: Business To Business

WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

eClass: 27-24-22-04
