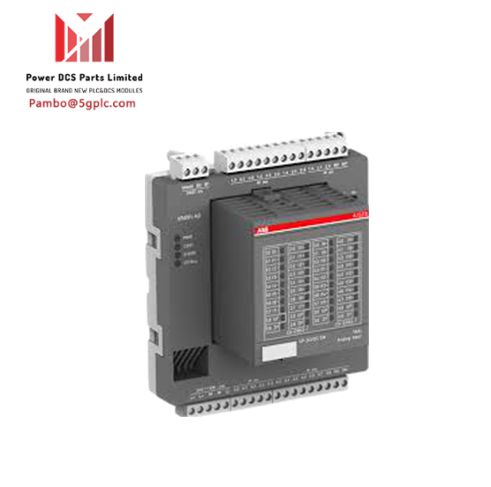

ABB 07AI91 GJR5251600R0202 Analog I/O Module

General Information

Extended Product Type: 07AI91

Product ID: GJR5251600R0202

ABB Type Designation: 07AI91

EAN: 4013614267635

Catalog Description: 07AI91: AC31, Analog I/O, module

Long Description: 07AI91: AC31, Analog I/O, module 8AI, 24VDC, U/I/RTD, 8/12 bit + Sign, 1/3-wire, CS31

Additional Information

ABB Type Designation: 07AI91

ABS Certificate: 1SAA960000-0102

Ambient Air Temperature:

• Operation: 0 ... +55 °C
• Storage: -25 ... +75 °C

Analog Inputs:

• 8 channels
• Thermocouple (J, K, S)
• PT100, PT1000
• -50 ... +50 mV, -500 ... +500 mV, -5 ... +5 V, -10 ... +10 V, 0 ... 20 mA
• 12 bit + Sign

CN8: 85389091

CS31-Bus: 1

CSA Certificate: 1SAA960000-1102

Cable Cross-Section: 0.08 ... 1.5 mm²

Country of Origin: Germany (DE), Spain (ES)

Customs Tariff Number: 85389091

DNV Certificate: 1SAA960000-0304

Data Sheet, Technical Information: 2CDC122023D0202

Declaration of Conformity - CE: 1SAD938505-0047

Degree of Protection: IP20

EAN: 4013614267635

Environmental Information: 1SAA960001-2401

Fieldbus Interface Type: CS31 Slave

Frame Size: Undefined

GL Certificate: 1SAA960000-0401

Gross Weight: 0.48 kg

I/O Option: Bus module with Onboard IO - 8AI

Instructions and Manuals: AC31 with AC1131 Part 2: hardware series 90

Invoice Description: 07AI91: AC31, Analog I/O, module

LR Certificate: 1SAA960000-0502

Made To Order: No

Maximum Operating Altitude Permissible: 2000 m

Minimum Order Quantity: 1 piece

Mounting on DIN Rail:

• TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
• TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Number of Analog Configurable I/Os: 0

Order Multiple: 1 piece

Primary Voltage: 24 V

Product Depth: 85 mm

Product Main Type: 07AI91

Product Name: Distributed Automation I/O

Product Net Depth / Length: 85 mm

Product Net Height: 140 mm

Product Net Weight: 0.48 kg

Product Net Width: 120 mm

Product Type: PLC-AC31-90

Quote Only: No

RINA Certificate: 1SAA960000-0802

RMRS Certificate: 1SAA960000-0702

RoHS Information: 1SAA960005-4401

Selling Unit of Measure: piece

Serial Port 1 Type: RS-485, CS31

Short Description: 1/3-wire, CS31

Stocked At (Warehouses): Wickliffe, Ohio, United States; New Berlin, Wisconsin, United States

Supply Voltage: 24 V DC

Terminal Type: Screw Terminals, Pluggable

UL Certificate: 1SAA960000-1602

WEEE B2C / B2B: Business To Business

WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
