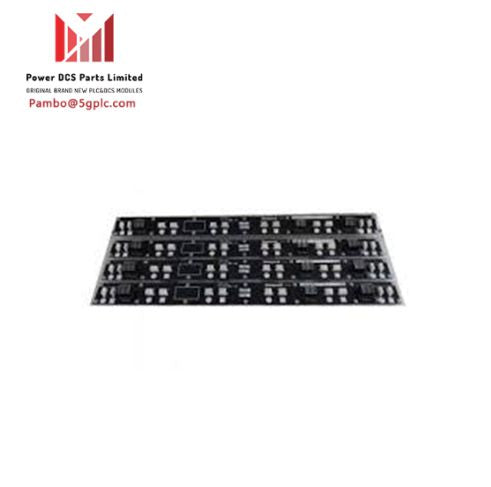

51307186-175 Honeywell 8C-SHEDA1 Header Board

Overview

The Honeywell 8C-SHEDA1 is a header board for the Experion Process Knowledge System (PKS). It provides a standardized interface for connecting I/O modules to the PKS controller. The 8C-SHEDA1 also provides a number of features that simplify the installation and configuration of I/O modules, including:

• Power distribution: The 8C-SHEDA1 distributes power to the connected I/O modules, eliminating the need for separate power supplies.
• Backplane bus: The 8C-SHEDA1 provides a backplane bus for communication between the I/O modules and the PKS controller.
• Configuration jumpers: The 8C-SHEDA1 provides configuration jumpers for setting the address and other parameters of the connected I/O modules.

Features

• Provides standardized interface for connecting I/O modules to the Experion PKS controller
• Distributes power to the connected I/O modules
• Provides backplane bus for communication between the I/O modules and the PKS controller
• Provides configuration jumpers for setting the address and other parameters of the connected I/O modules

Technical Specifications

• Dimensions: 172 mm x 102 mm x 41 mm (6.77 in x 4.02 in x 1.61 in)
• Weight: 0.5 kg (1.1 lb)
• Input voltage: 110 VAC or 220 VAC
• Output voltage: 24 VDC
• Number of I/O module slots: 8
