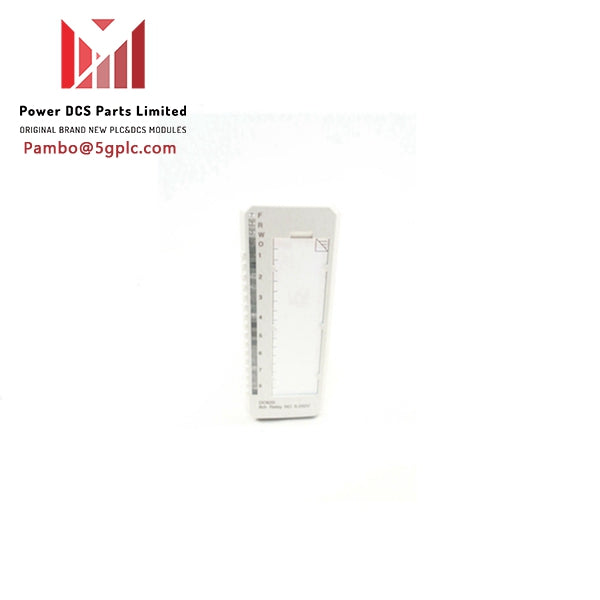

3BSE008510R1 ABB DO810 Digital Output Module

Specifications

  • Manufacturer: ABB

  • Product No.: DO810

  • Condition： 10 Items in Stock

  • Product Type: Digital Output Module

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 180g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

  • General Information:
    • Article Number: 3BSE008510R1
    • Type: Digital Output
    • Signal Specification: 24V d.c. (12 - 32 V d.c.), 0.5 A
    • Number of Channels: 16
    • Signal Type: Current sourcing, current limiting
    • HART: No
    • SOE: No
    • Redundancy: No
    • High Integrity: No
    • Intrinsic Safety: No
    • Mechanics: S800
  • Detailed Data:
    • Isolation: Groupwise isolated from ground
    • Output Load: < 0.4 Ω
    • Current Limiting: Short circuit-proof current-limited output
    • Maximum Field Cable Length: 600 meters (656 yards)
    • Rated Insulation Voltage: 50 V
    • Dielectric Test Voltage: 500 V a.c.
    • Power Dissipation: Typical 2.1 W
    • Current Consumption +5 V Modulebus: 80 mA
  • Diagnostics:
    • Front LED Indicators: F(ault), R(un), W(arning), O(SP), Channel 1-16 Status
    • Supervision: Process voltage (1 per group)
    • Status Indication of Supervision: Module Error, Module Warning, Channel error
  • Environment and Certification:
    • CE Mark: Yes
    • Electrical Safety Standards: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
    • Hazardous Location Certifications: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
    • Marine Certifications: ABS, BV, DNV, LR
    • Operating Temperature: 0 to +55 °C (+32 to +131 °F), approvals issued for +5 to +55 °C
    • Storage Temperature: -40 to +70 °C (-40 to +158 °F)
    • Pollution Degree: Degree 2, IEC 60664-1
    • Corrosion Protection: ISA-S71.04: G3
    • Relative Humidity: 5 to 95%, non-condensing
    • Max Ambient Temperature: 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
    • Protection Class: IP20 according to IEC 60529
    • Mechanical Operating Conditions: IEC/EN 61131-2
    • EMC Standards: EN 61000-6-4, EN 61000-6-2
    • Overvoltage Categories: IEC/EN 60664-1, EN 50178
    • Equipment Class: Class I according to IEC 61140 (earth protected)
    • RoHS Compliance: DIRECTIVE/2011/65/EU (EN 50581:2012)
    • WEEE Compliance: DIRECTIVE/2012/19/EU
  • Compatibility:
    • Use with MTU: TU810, TU812, TU814, TU830
    • Keying Code: AA
  • Dimensions:
    • Width: 45 mm (1.77”)
    • Depth: 102 mm (4.01”), 111 mm (4.37”) including connector
    • Height: 119 mm (4.7”)
    • Weight: 0.18 kg (0.4 lbs.)
