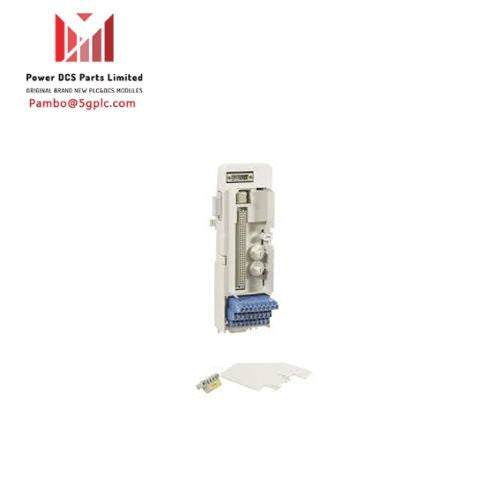

3BSC690075R1 ABB TU890 Terminal Block

General Info

• Article Number: 3BSC690075R1
• Type: Compact
• Connection: Terminal block
• Channels: 8
• Voltage: 24 V
• Mounting: Horizontal
• Mounting Detail: 55 º (131 °F)
• Use with I/O: AI890, AI893, AI895, AO890, AO895, DI890, DO890
• Process Connections: 27 blue terminals
• Single/Redundant I/O: Single

Detailed Data

• Maximum Current per I/O Channel: 2 A
• Acceptable Wire Sizes:
  • Process Connector:
    • Solid: 0.2 - 4 mm²
    • Stranded: 0.2 - 2.5 mm², 24 - 12 AWG
    • Recommended Torque: 0.5 - 0.6 Nm
  • Power Supply Connector:
    • 0.25 - 2.5 mm², 24 - 14 AWG
    • Recommended Torque: 0.5 - 0.6 Nm
• Dielectric Test Voltage: 500 V a.c.

Environment and Certification

• CE Mark: Yes
• Electrical Safety: EN 61010-1, EN 61010-2-201
• Hazardous Location: ATEX/IECEx Zone 2 with interface to Zone 0, cFMus C1, Div 2/Zone 2 with interface to C1, C2, C3 Div 1/Zone 0
• Marine Certification: ABS, BV, DNV-GL, LR
• Temperature, Operating: 0 to +55 °C (+32 to +131 °F)
• Temperature, Storage: -40 to +70 °C (-40 to +158 °F)
• Relative Humidity: 5 to 95 %, non-condensing
• Pollution Degree: Degree 2, IEC 60664-1
• Corrosion Protection: ISA-S71.04: G3
• Max Ambient Temperature: 55 °C (131 °F), for vertical mounting 40 °C (104 °F)
• Protection Class: IP20 according to IEC 60529
• Mechanical Operating Conditions: IEC/EN 61131-2
• EMC: EN 61000-6-4, EN 61000-6-2
• Overvoltage Categories: IEC/EN 60664-1, EN 50178
• Equipment Class: Class I according to IEC 61140; (earth protected)
• RoHS Compliance: EN 50581:2012
• WEEE Compliance: DIRECTIVE/2012/19/EU

Dimensions

• Width: 64 mm (1.77 in.) including connector, 58.5 mm (2.3 in.) edge to edge installed
• Depth: 58 mm (2.28 in.), 106 mm (4.2 in.) including terminals
• Height: 194 mm (7.6 in.) including latch
• Weight: 0.17 kg (0.37 lbs.)
