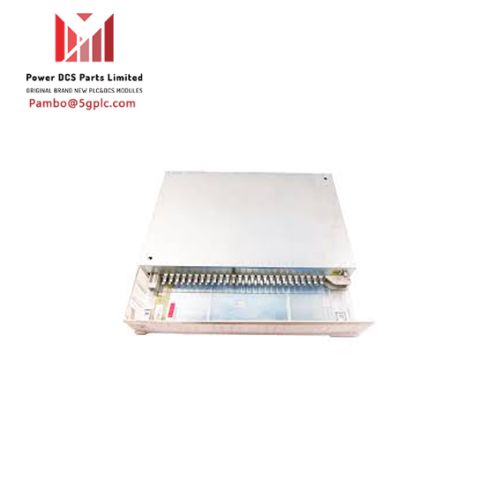

3BHT300036R1 ABB AI625 Analog Input Module

General Information

• Product ID: 3BHT300036R1
• ABB Type Designation: AI625
• Catalog Description: AI625 Analog Input 16ch, 12 Bit, 4-20 mA
• Long Description: AI625 Analog Input 16Ch 12 Bit, 4-20 mA

Additional Information

• Medium Description: AI625 Analog Input 16Ch 12 Bit, 4-20 mA
• Product Type: I-O_Module
• Technical Information: S600 I/O Analog Input Module.
  • Channels: 16 channels
  • Resolution: 12 bits
  • Isolation: Galvanic isolated as one group
  • Input Range: 0-20 mA
  • Common Mode Voltage (CMV): 50 V
  • Common Mode Rejection Ratio (CMRR): > 100 dB
  • Shunt Resistance: 100 Ω
• Note: This part is exempted from the scope of 2011/65/EU (RoHS) as provided in Article 2(4)(c), (e), (f), and (j) therein (ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY - ABB Advant Master Process Control System)

Ordering Information

• HS Code: 853890—Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36, or 85.37.- Other
• Customs Tariff Number: 85389091

Dimensions

• Product Net Depth / Length: 252 mm
• Product Net Height: 273 mm
• Product Net Width: 40 mm
• Product Net Weight: 1.225 kg

Technical Specifications

• Channel Type: AI
• Number of Input Channels: 16

Environmental Conditions

• RoHS Status: Following EU Directive 2011/65/EU
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
• Number of Batteries: 0
• SCIP: f252bedf-684b-4413-987d-ce8381a68754 Sweden (SE)
