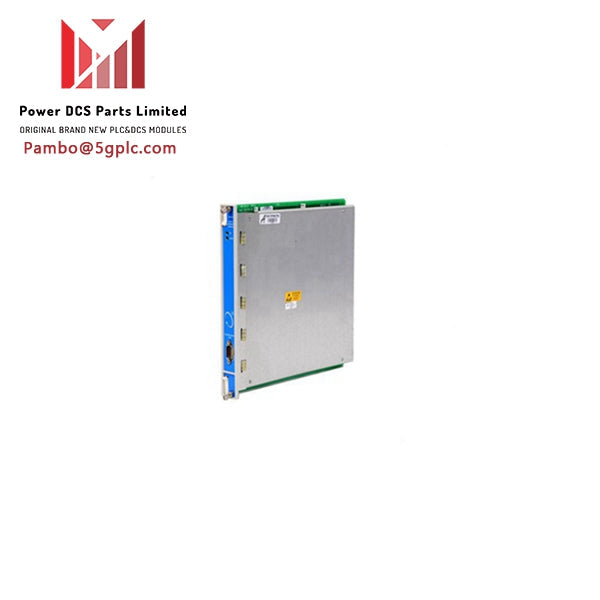

3500/25 125800-01 Bently Nevada Keyphasor I/O Module

Overview

The Bently Nevada 3500/25 125800-01 is a specialized Keyphasor Input/Output module designed to be part of the broader 3500 Machinery Protection System. This module plays a crucial role in providing precise timing measurements and synchronizing various components within the system.

Features

• Keyphasor Signal Processing: The module is specifically designed to process Keyphasor signals, which are generated by a rotating shaft or gear. These signals provide a reference point for measuring rotational speed and other critical parameters.
• Two-Channel Capability: The 125800-01 module offers two independent channels, enabling it to process signals from multiple sources simultaneously.
• Half-Height Design: This compact design allows for efficient utilization of space within the 3500 rack, making it suitable for various installation configurations.
• Digital Output: The module converts analog Keyphasor signals into digital format, facilitating further processing and analysis by the 3500 system.
• Enhanced Capabilities: Compared to previous generations, the 3500/25 Enhanced Keyphasor Module offers improved signal processing capabilities while maintaining backward compatibility.

Technical Specifications

• Part Number: 125800-01
• Module Type: Keyphasor I/O Module
• Compatibility: 3500 Machinery Protection System
• Channels: 2
• Form Factor: Half-height
• Input Signals: Proximity probes or magnetic pickups
• Output Signals: Digital Keyphasor signals
