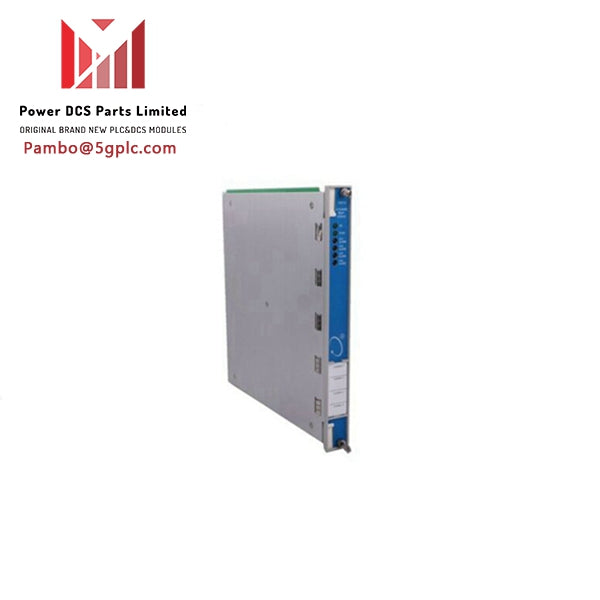

288055-01 | Bently Nevada | 3500/22M Standard Transient Data Interface Module

Description

The Bently Nevada 3500/22M 288055-01 is a Transient Data Interface (TDI) module that serves as the interface between the 3500 monitoring system and compatible software, such as GE’s System 1* machinery management software. It combines the capabilities of a 3500/20 Rack Interface Module (RIM) with the data collection functionality of a communication processor like TDXnet.

Key Features

• High-speed, bi-directional interface
• Supports a variety of triggering options
• Collects and transmits transient data from a variety of sources
• Rugged and reliable design

Technical Specifications

• Data transfer rate: 100 Mbps
• Transient data storage: 16 MB
• Triggering options: Time, event, and threshold
• Input channels: 16
• Output channels: 2
• Dimensions: 9.5 x 6.7 x 2.2 inches
• Weight: 1.3 pounds

Additional Information

• Power consumption: 10.5 Watts
• Ethernet: 10Base-T or 100Base-TX Ethernet, autosensing 100Base-FX Fiber-Optic Ethernet
• LED indicator: Pre and post-alarm data
• I/O module relay: Yes
• Rack reset button: Yes
